Classic combo
Snacks and drinks in one footprint — the usual break-room pick.
Machines
What we can order
These are the machine families on Vending Concepts, plus Wittern / USI cabinets they carry. If they have it, we can order it and place it at a qualifying site. You don't buy the machine — we do.
Need something ready sooner? See what we have in stock.
Snack
Chips, candy, and bars when drinks already have their own cabinet.
Glass-front drink
Bottles and cans behind glass — hotel-lobby look, not a stacker.
Stacked drink
High-capacity bottle/can vendor. Pairs with a snack machine on busy floors.
AI Smart Shop
Open the door, take items, pay cashless — refrigerated coolers or ambient Smart Shop.
Food & refrigerated
Sandwiches, salads, and other cold food that needs a refrigerated spiral cabinet.
Coffee & brewers
Fresh-brew hot and iced coffee for offices and warehouses that want more than a can.
Frozen & ice cream
Ice cream and frozen meals. Needs the wall space and a dedicated outlet.
Specialty
PPE, laundry, or other non-food merchandising on a configurable cabinet.
Footprints
Representative cabinets from each family. Tape the wall against these numbers — we confirm on the consult.
Most cabinets are fridge-tall (about 6–7 feet) and 2½–4 feet wide. Leave a few inches behind for airflow. A dedicated 115V outlet. Most fit through a standard 36″ doorway with the machine door taken off.
Classic combo
Compact
Wittern-USI 3568 / 24-select
Wittern / USI
29.5″ W × 38″ D × 72″ H
29.5" wide vs a 36" doorway
About 693 lb
Snacks and drinks in a 3-wide cabinet. Common first machine for a small site.
28.74″ × 76.38″ face
Compact

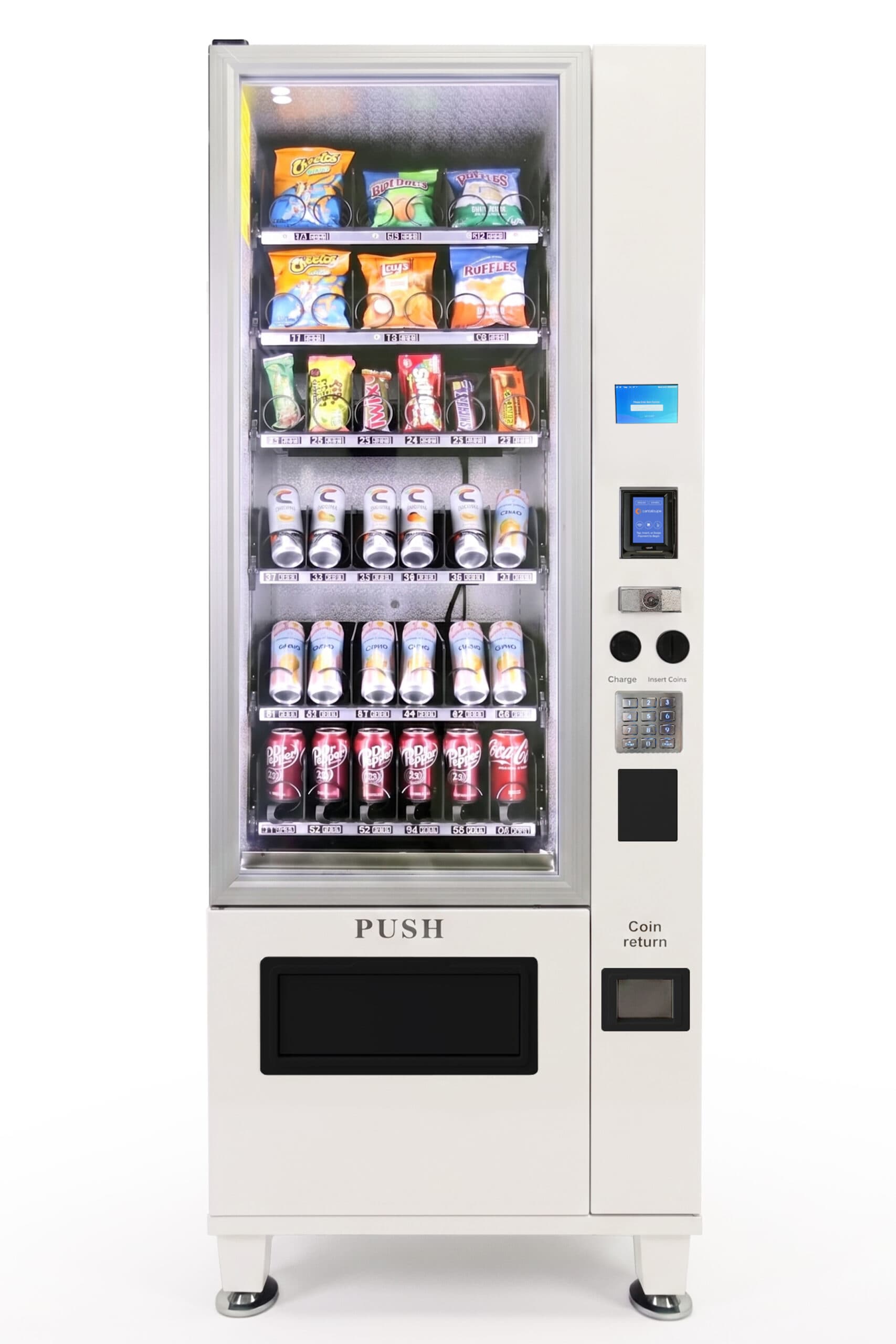

VC 7206 refrigerated combo
Vending Concepts
28.74″ W × 31.13″ D × 76.38″ H
28.74" wide vs a 36" doorway
About 496 lb
Under 29″ wide. Tight corridors and ADA sites.
Standard
USI Futura 29-select
Wittern / USI
34.75″ W × 31.25″ D × 74.5″ H
34.75" wide vs a 36" doorway
About 621 lb
Split snack + cold drink. Fits most break rooms.
Large
VC 7210 refrigerated combo
Vending Concepts
40.79″ W × 31.1″ D × 76.38″ H
40.79" wide vs a 36" doorway
About 540 lb
5-wide glass combo — more drinks and snacks without a second cabinet.
47″ × 79.5″ face
Large
VC 7212 extra-large combo
Vending Concepts
47″ W × 31.25″ D × 79.5″ H
47" wide vs a 36" doorway
About 650 lb
6-wide. Needs a full stretch of wall — warehouses and cafeterias.
Large
USI 38-select combo
Wittern / USI
41″ W × 38″ D × 72″ H
41" wide vs a 36" doorway
About 811 lb
High-traffic combo. Fridge-width of wall.
Snack
Compact
Wittern-USI 3130
Wittern / USI
29.3″ W × 34.1″ D × 68″ H
29.3" wide vs a 36" doorway
About 501 lb
Narrow snack cabinet — laundry rooms, small offices, tight halls.
28.74″ × 76.38″ face
Compact

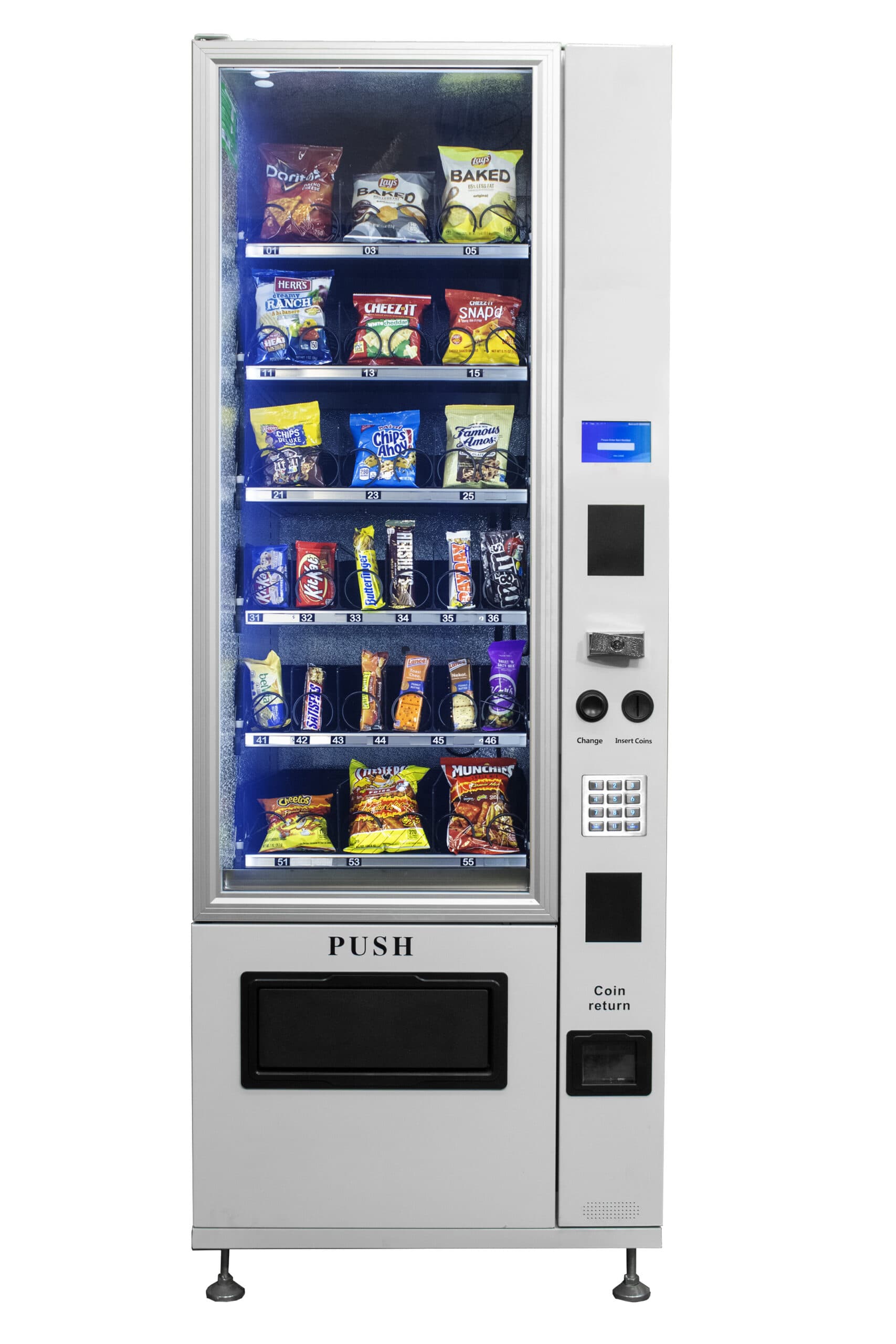

VC 7206 ambient snack
Vending Concepts
28.74″ W × 31.13″ D × 76.38″ H
28.74" wide vs a 36" doorway
3-wide snack merchandiser. Same slim footprint as the 7206 combo.
41″ × 72″ face
Large
USI Evoke 5 (40-select)
Wittern / USI
41″ W × 35.2″ D × 72″ H
41" wide vs a 36" doorway
About 564 lb
5-wide snack merchandiser for busy break rooms.
47″ × 78″ face
Large
VC 8012-10S ADA snack
Vending Concepts
47″ W × 30.25″ D × 78″ H
47" wide vs a 36" doorway
About 654 lb
6-wide glass-front snack. VC’s high-capacity snack cabinet.
Glass-front drink
Standard
USI 28-select glass-front drink
Wittern / USI
29.5″ W × 38″ D × 72″ H
29.5" wide vs a 36" doorway
About 691 lb
See the bottles through the glass. Slimmer face, deeper cabinet.
28.74″ × 76.38″ face
Compact

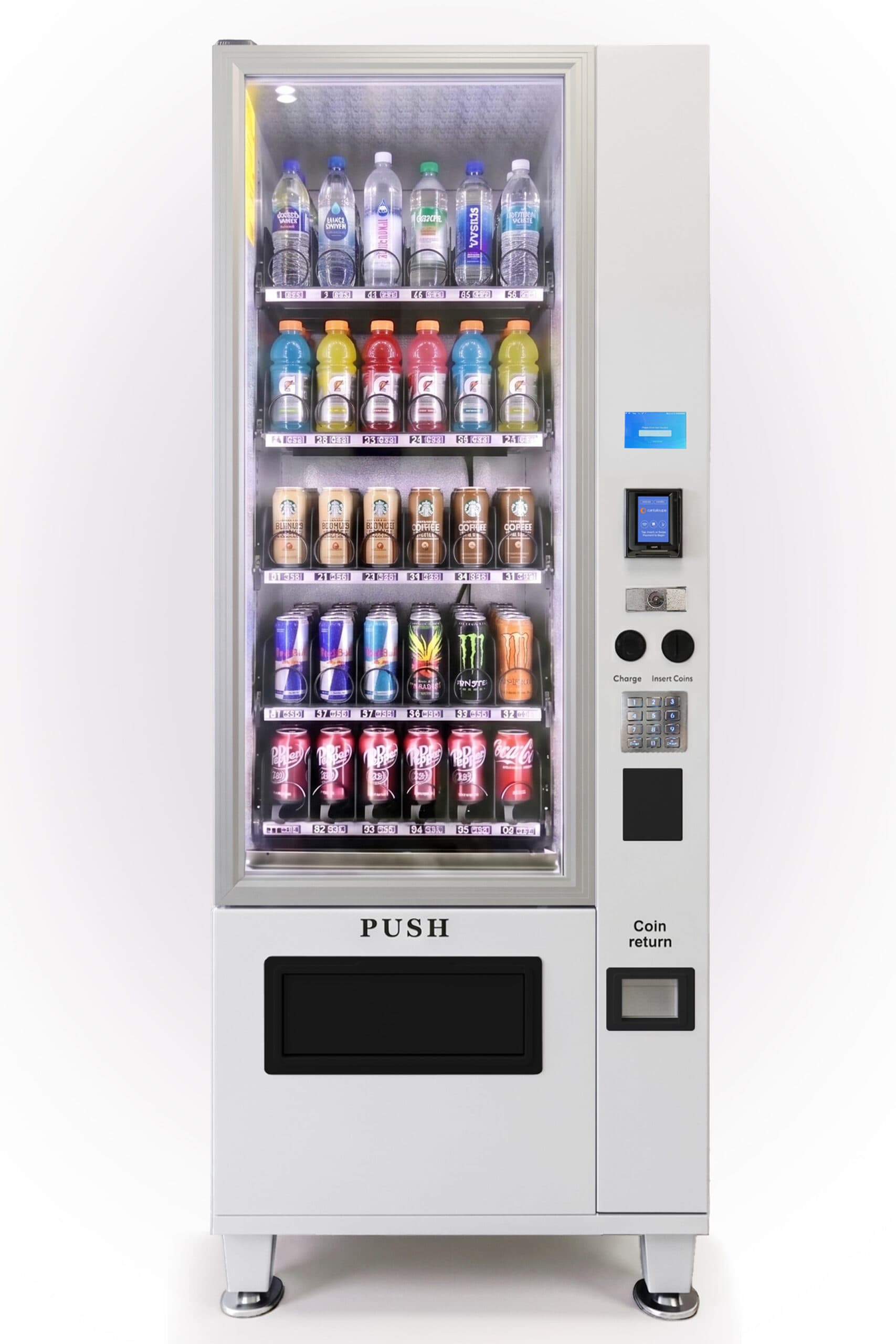

VC 7206 glass-front drink
Vending Concepts
28.74″ W × 31.13″ D × 76.38″ H
28.74" wide vs a 36" doorway
Under 29″ wide refrigerated glass-front drink cabinet.
Stacked drink
Standard
USI 10-select cold drink
Wittern / USI
31.75″ W × 36.5″ D × 72″ H
31.75" wide vs a 36" doorway
About 671 lb
Classic stacker — high can/bottle capacity. Pairs with a snack machine.
AI Smart Shop
28.55″ × 80.63″ face
Standard
USI Spectra Core
Wittern / USI
28.55″ W × 31.93″ D × 80.63″ H
28.55" wide vs a 36" doorway
About 313 lb
AI grab-and-go refrigerated cooler. Taller than a snack machine.
Standard

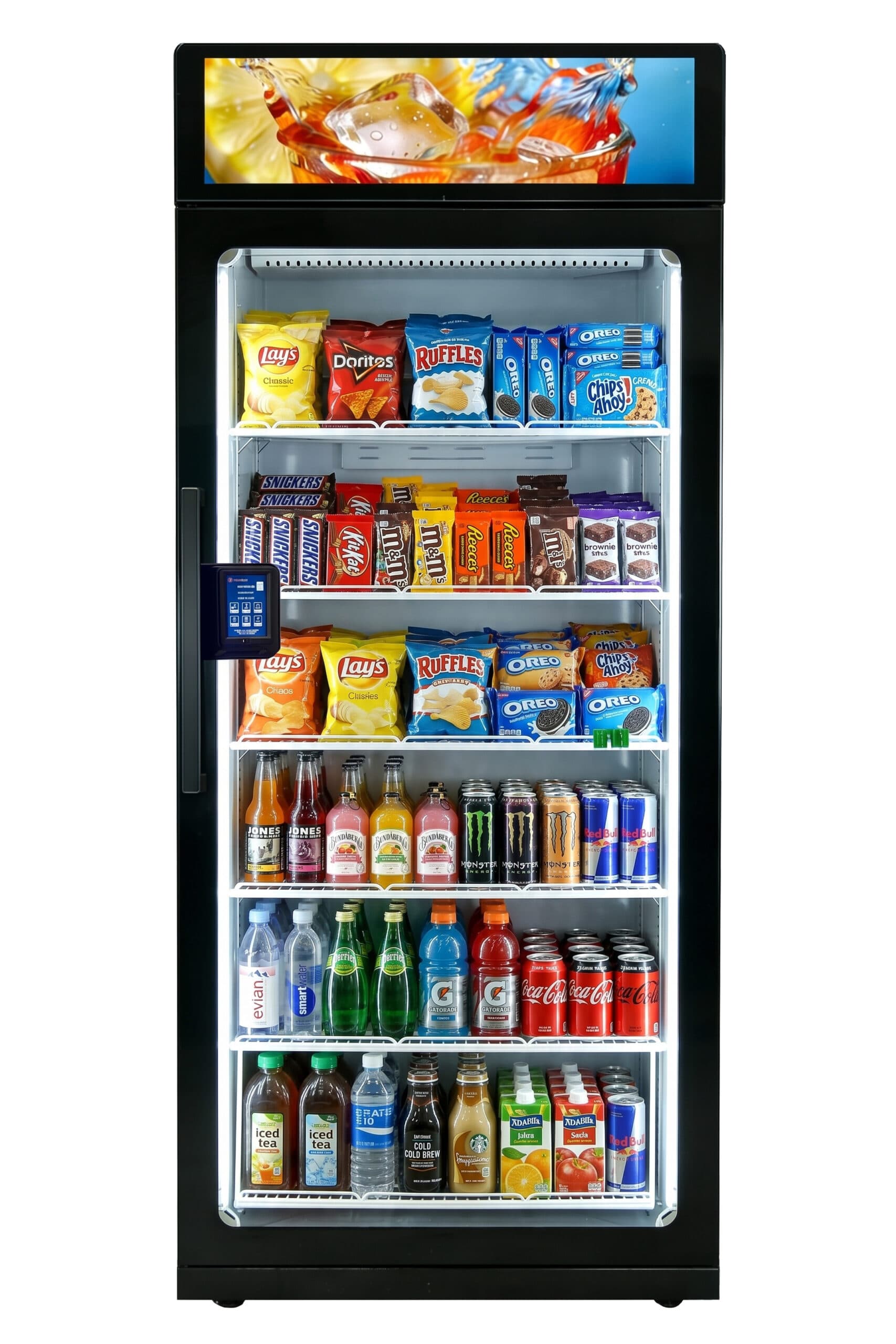

Smart Shop SRK
Vending Concepts
31.5″ W × 28.8″ D × 82.6″ H
31.5" wide vs a 36" doorway
About 409 lb
VC’s refrigerated AI cooler. Open, take, pay cashless.
54″ × 78″ face
Large
Habco 28HCTD Smart Shop
Vending Concepts
54″ W × 31″ D × 78″ H
54" wide vs a 36" doorway
About 470 lb
Wide refrigerated Smart Shop. Cafeteria or lobby, not a small office.
29″ × 77.5″ face
Standard
Smart Shop Ambient
Vending Concepts
29″ W × 29″ D × 77.5″ H
29" wide vs a 36" doorway
Unrefrigerated AI cabinet — snacks, PPE, specialty. Typical size ~26–32″ square, 75–80″ tall.
Food & refrigerated
28.74″ × 76.38″ face
Compact
VC 7206-5F cold food
Vending Concepts
28.74″ W × 31.13″ D × 76.38″ H
28.74" wide vs a 36" doorway
About 496 lb
Slim refrigerated food merchandiser for sandwiches and burritos.
Coffee & brewers
42.5″ × 76.5″ face
Standard
VC CF8N-22 iced & hot coffee
Vending Concepts
42.5″ W × 31.5″ D × 76.5″ H
42.5" wide vs a 36" doorway
About 500 lb
Bean-to-cup with iced drinks. Wider than a snack machine — plan the wall.
Frozen & ice cream
45.75″ × 77.25″ face
Large

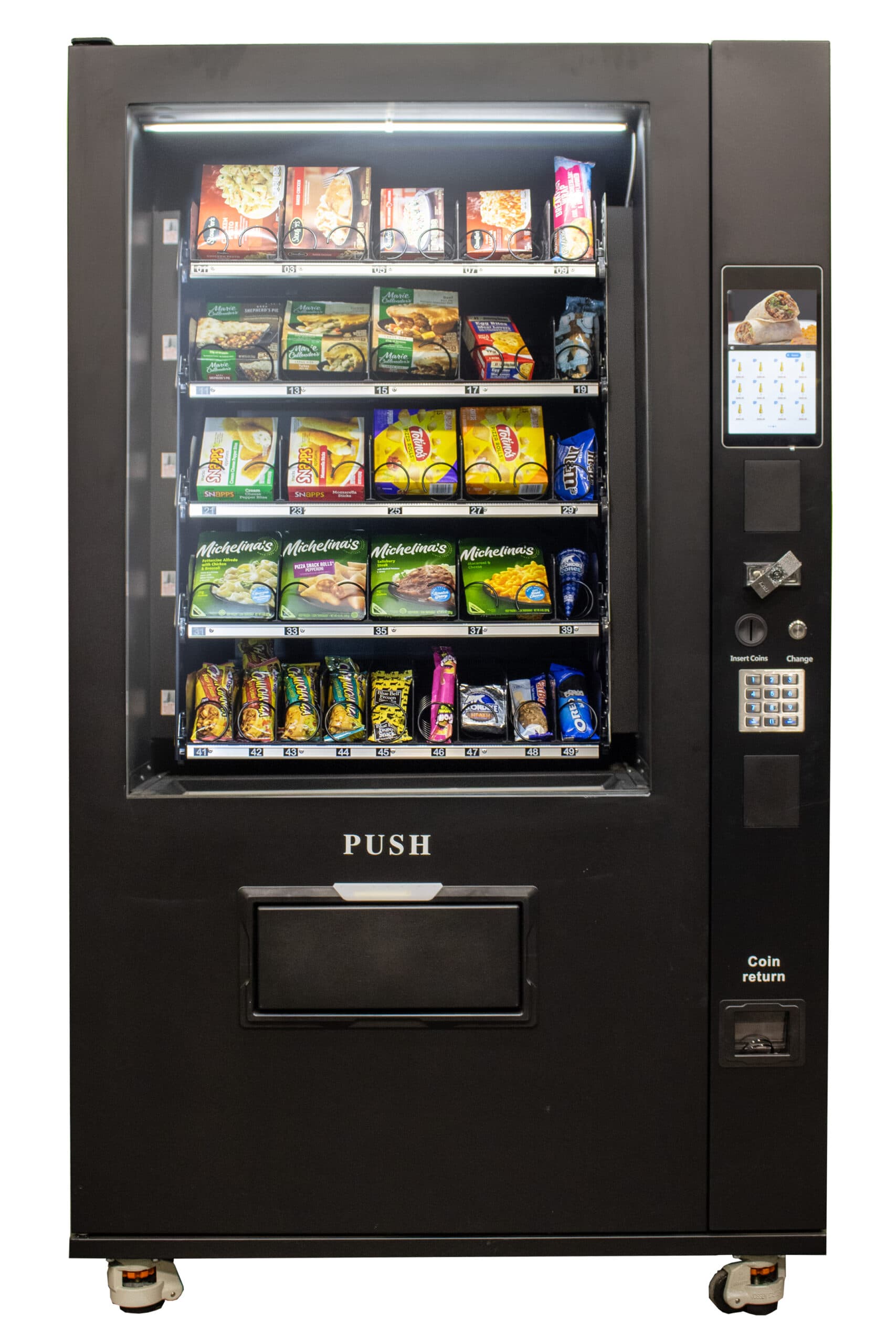

VC FSC9-10 frozen food
Vending Concepts
45.75″ W × 33.5″ D × 77.25″ H
45.75" wide vs a 36" doorway
About 930 lb
Frozen meals and ice cream. Heavy cabinet — confirm floor and doorway.
Specialty
29″ × 77.5″ face
Standard
Smart Shop Ambient (specialty)
Vending Concepts
29″ W × 29″ D × 77.5″ H
29" wide vs a 36" doorway
Same ambient AI cabinet configured for PPE, laundry, or other non-food.
Dimensions are from Vending Concepts and Wittern / USI catalogs. The cabinet on your site may differ. This is not a store — we place and service the machine.
Not sure which cabinet fits?
Tell us about traffic, wall space, and the mix you want. We'll recommend from this catalog.
